TTL-232R-3V3-WE

SKU:BEUT06
USB TO RS232 WIRE END, 5.0M, BLACK Cable, Transparent USB CONNECTOR, +3.3V OUTPUT VOLTAGE
USB to UART cable with RS232 level UART signals

Data Rates:1MBaud  USB Speed: Full Speed (12Mbps)  Interfaces:UART USB Connector:Type A  End Connector:Wire ended Cable Length:5m Cable Details:6 core, 5mm UL2464 24 AWG  Packages:N/A  Channels:1 I/O Voltage:RS232 USB Class:FTDI Drivers  Virtual Com Port:Yes  Max Power Output:+5V / 75mA  FTDI Internal IC:FT232R  Operating Temperature:-40°C to +85°C

The USB-RS232-WE-5000-BT_3.3 is a 5m long USB to RS232 converter cable.

Using the FT232R chip combined with an RS232 level converter, the cable is a CE and FCC approved product which is one of the simplest USB – RS232 solutions around.

Powered from the USB port, the RS232 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.

The cable can be used with FTDI’s drivers to provide a virtual COM port on a PC which is capable of communication rates with RS232 units from 300 baud up to 1 MBaud.

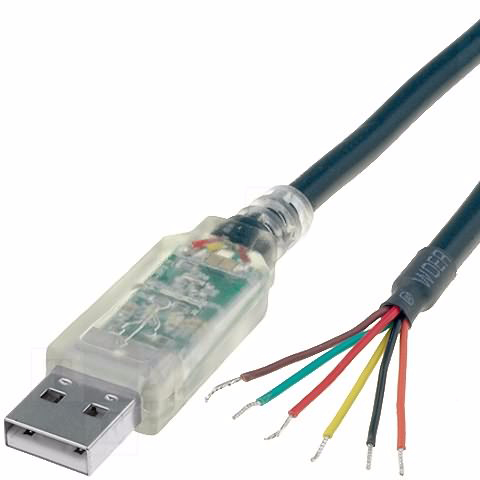

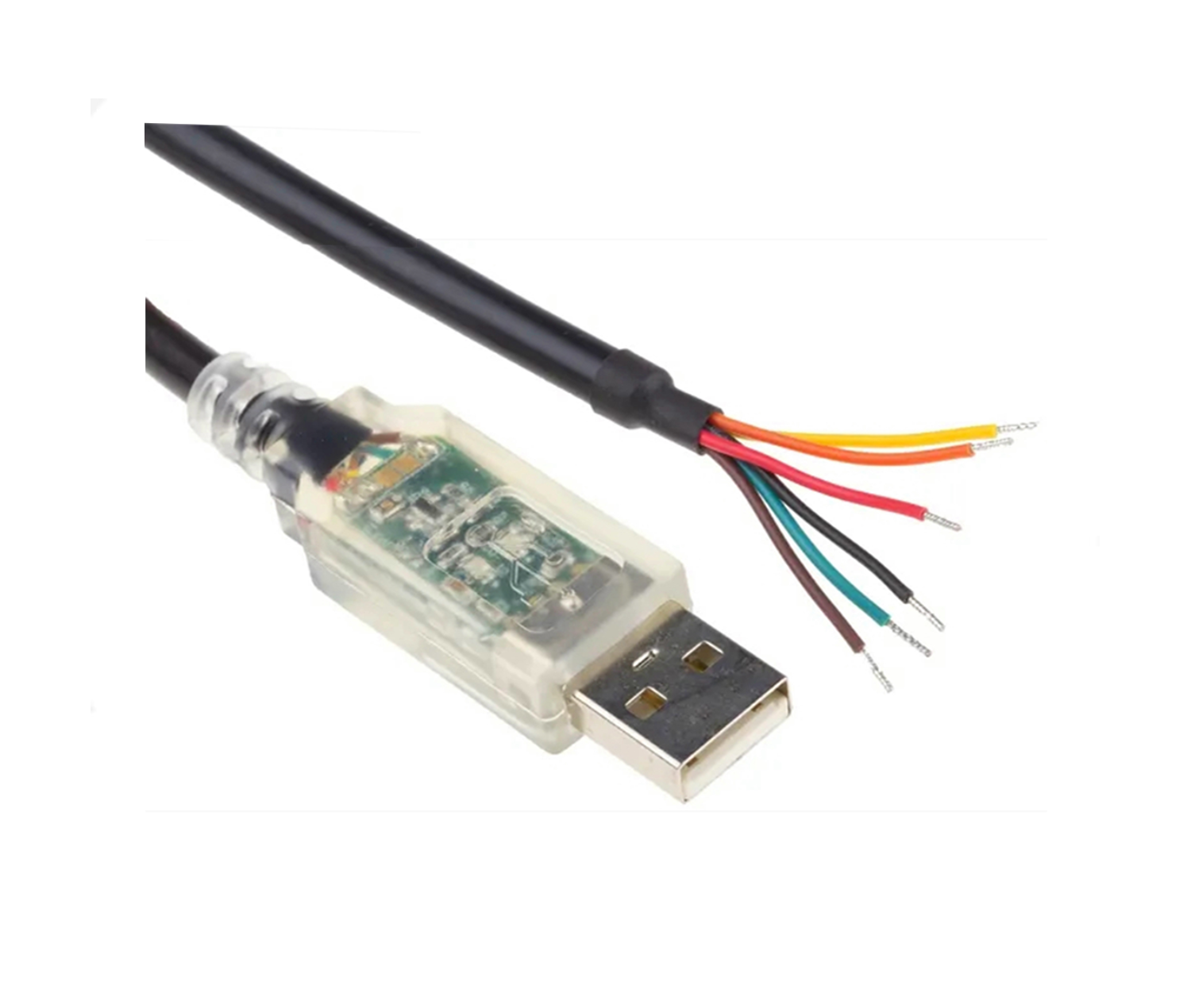

Data RX and TX LEDs visible through transparent moulding
3V3 supply output
cable colour:black
