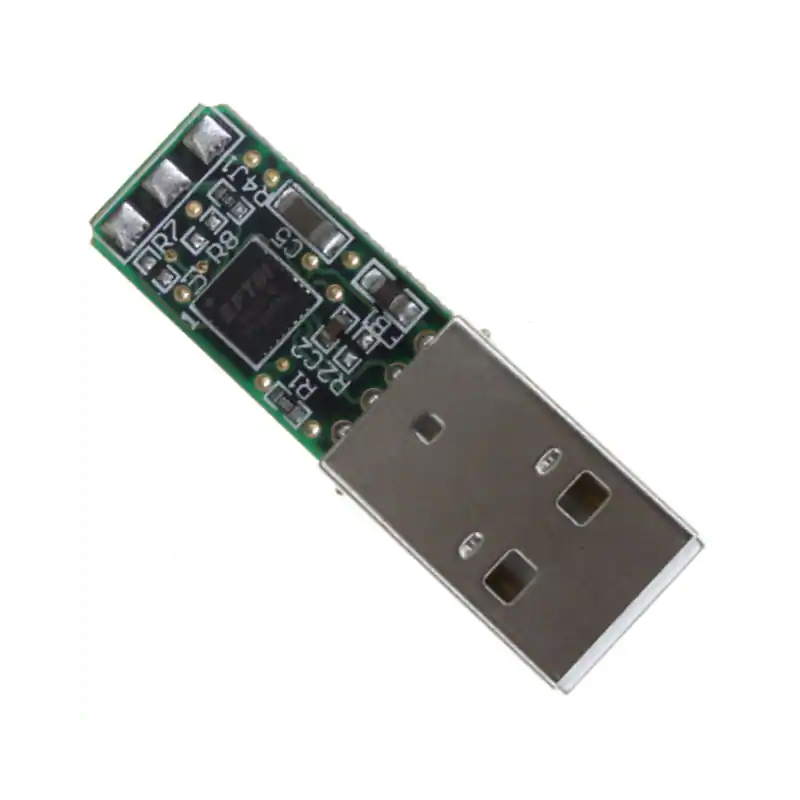

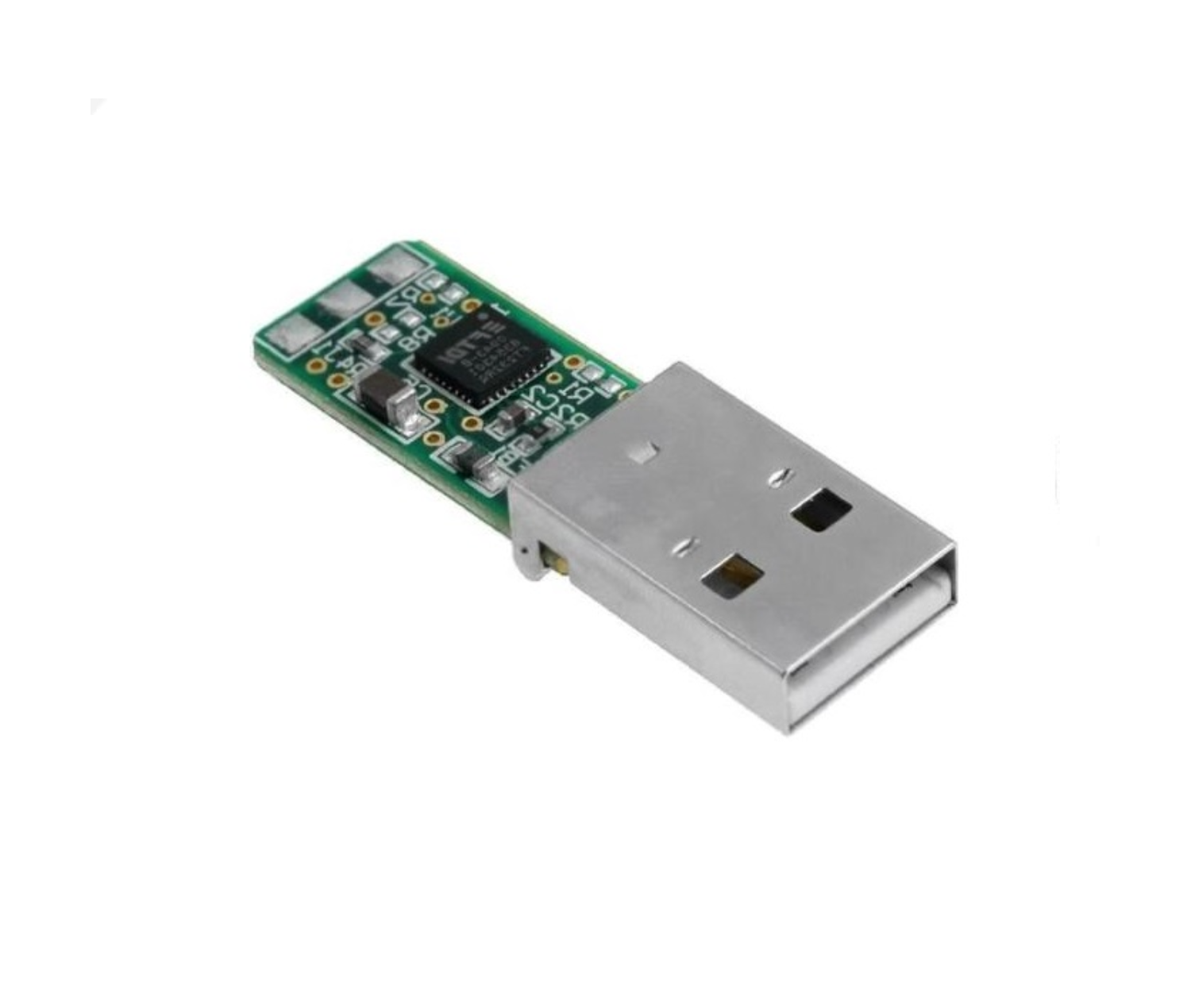

TTL-232R-3V3-PCB

SKU:BEUT08
USB to UART cable Supports +3.3V UART signals

Data Rates: 3MBaud  USB Speed:Full Speed (12Mbps)  USB Connector:Type A  End Connector:-Cable Details:-Packages:N/A  Max Power Output:+5V/75mA  FTDI Internal IC:FT232R Operating Temperature:-40°C to+85°C
The USB TTL Serial cables are a range of USB to serial converter cables which provide connectivity between USB and serial UART interfaces.

All cables feature an FTDI FT232R device integrated within the cable USB type ‘A’ connector, which provide access to UART Transmit (Tx), Receive (Rx), RTS#, CTS#, VCC (5V) and GND connections.  All cables are fully RoHS compliant and are FCC/CE approved.
