TTL-232R-5V

SKU:BEUT01
USB to UART cable Supports +5V UART signals
Data Rates:3MBaud
USB Speed:Full Speed (12Mbps)
 USB Connector:Type A
End Connector:6 pin SIL, 0.1 pitch
Cable Length:1.8m Cable Details:6 core, 5mm UL2464 24 AWG
Max Power Output:+5V/75mA  FTDI Internal IC:FT232R
Operating Temperature:-40°C to +85°C

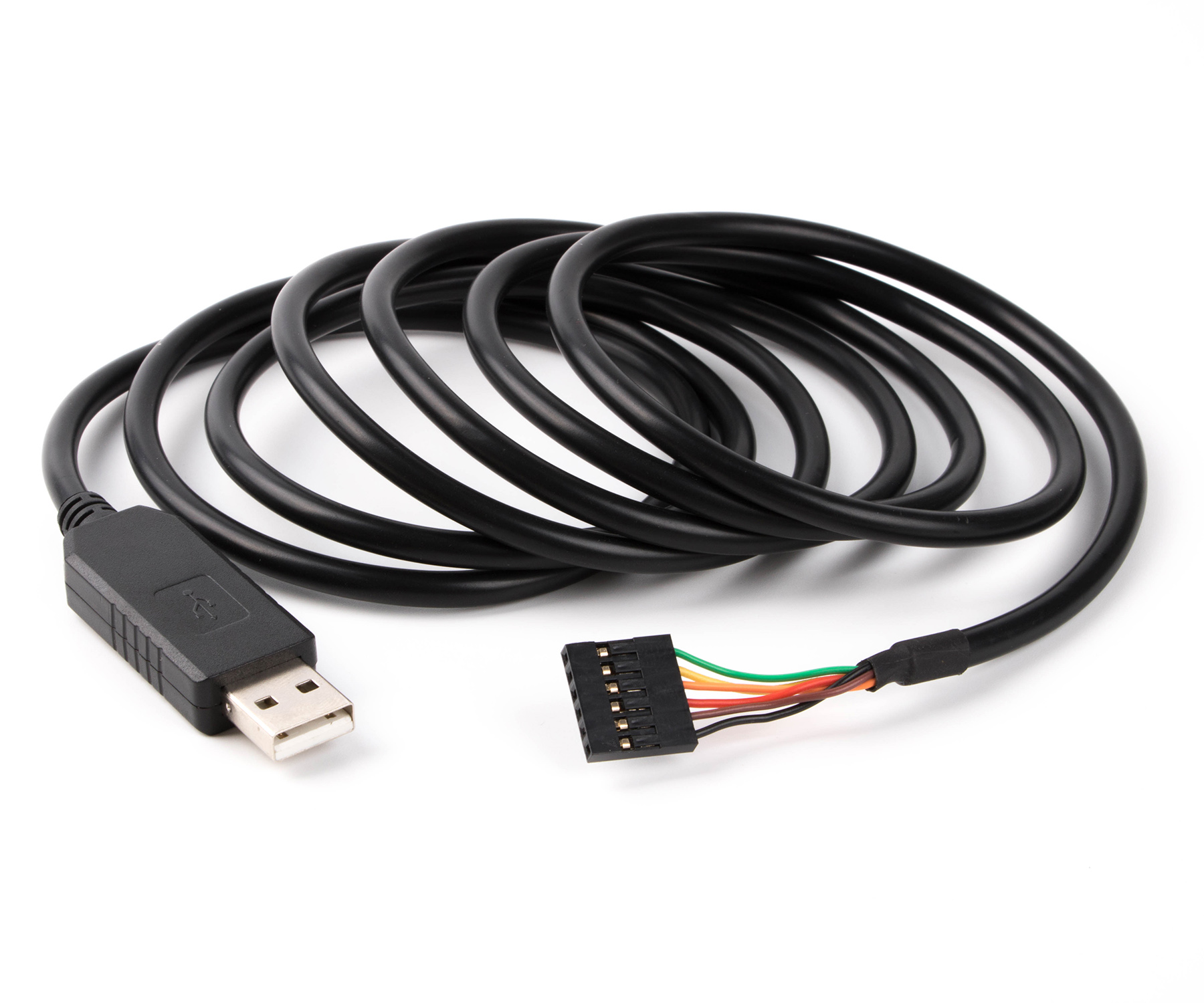

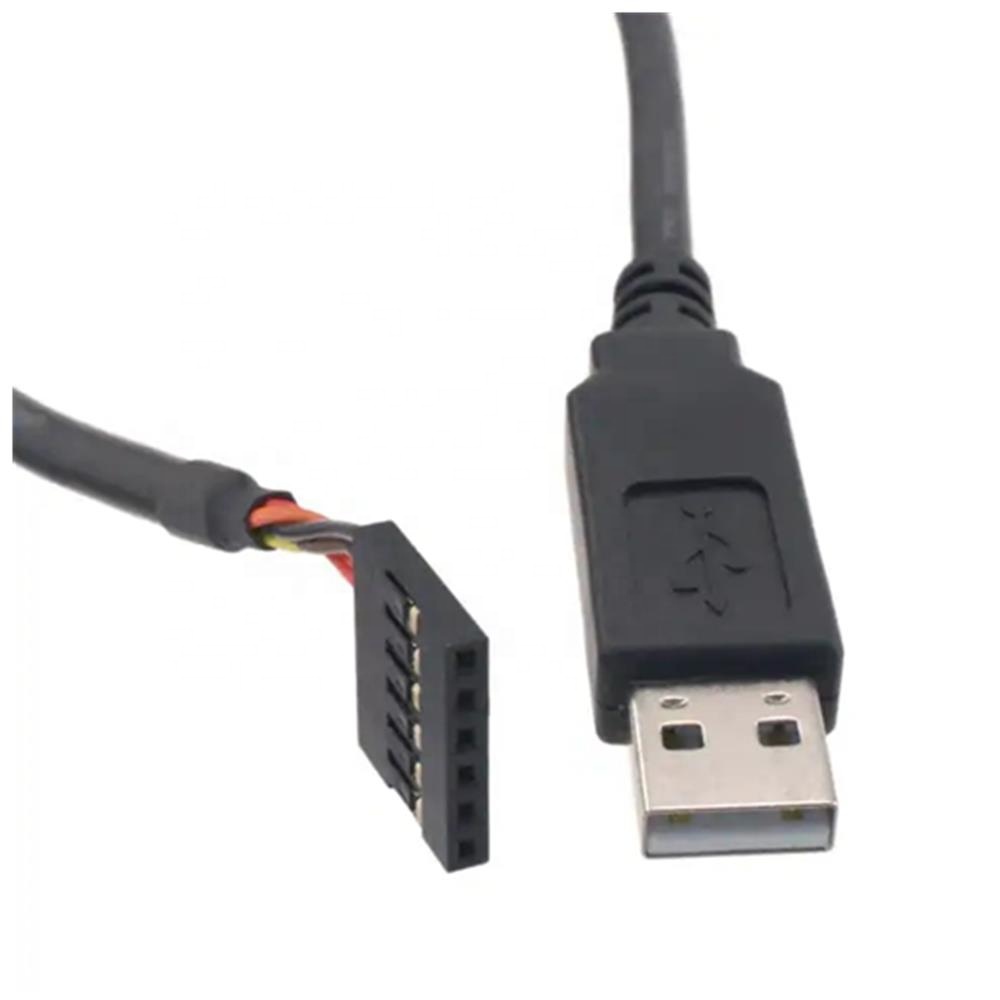

The TTL-232R-5V is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cable has it’s I/O pins configured to operate at 5V levels.

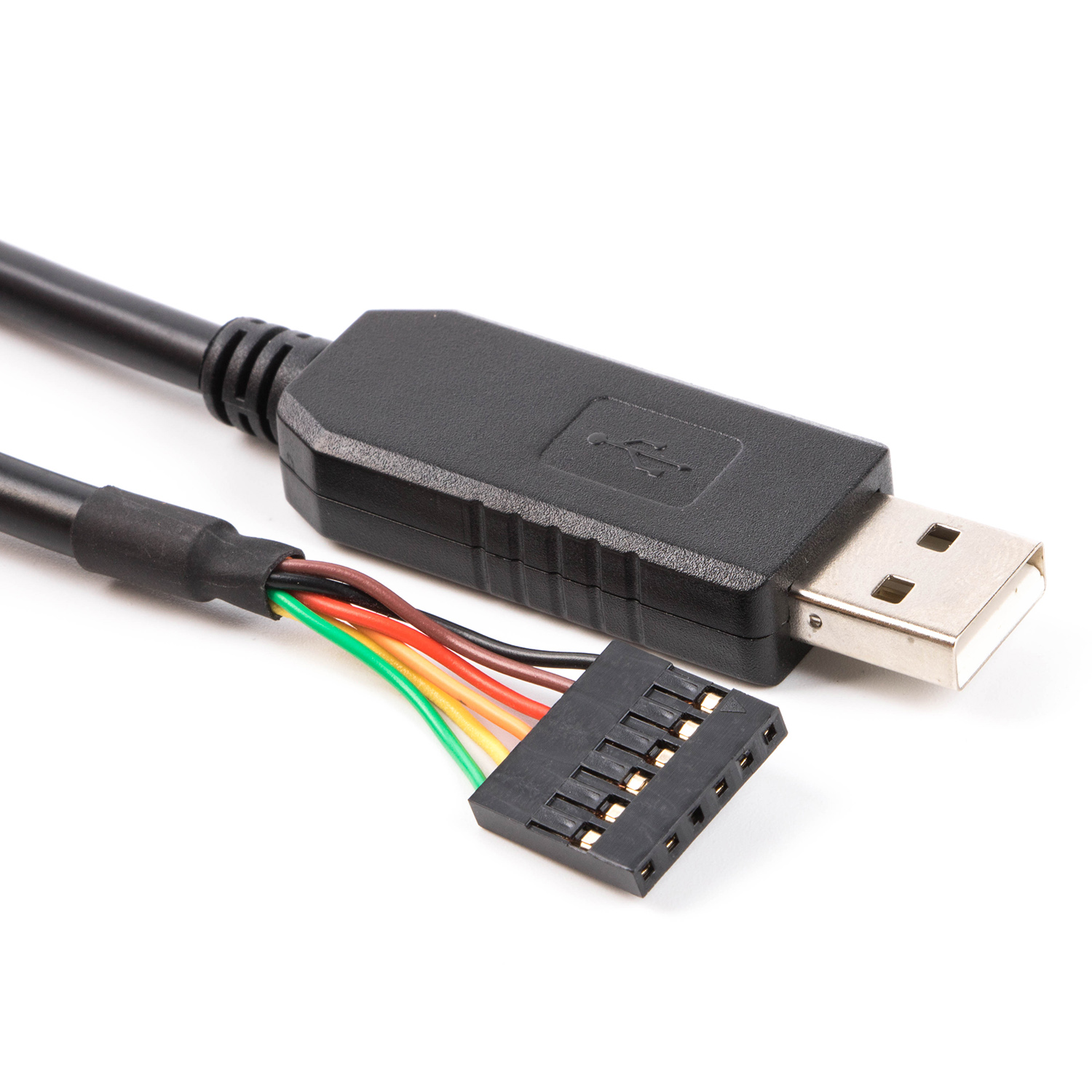

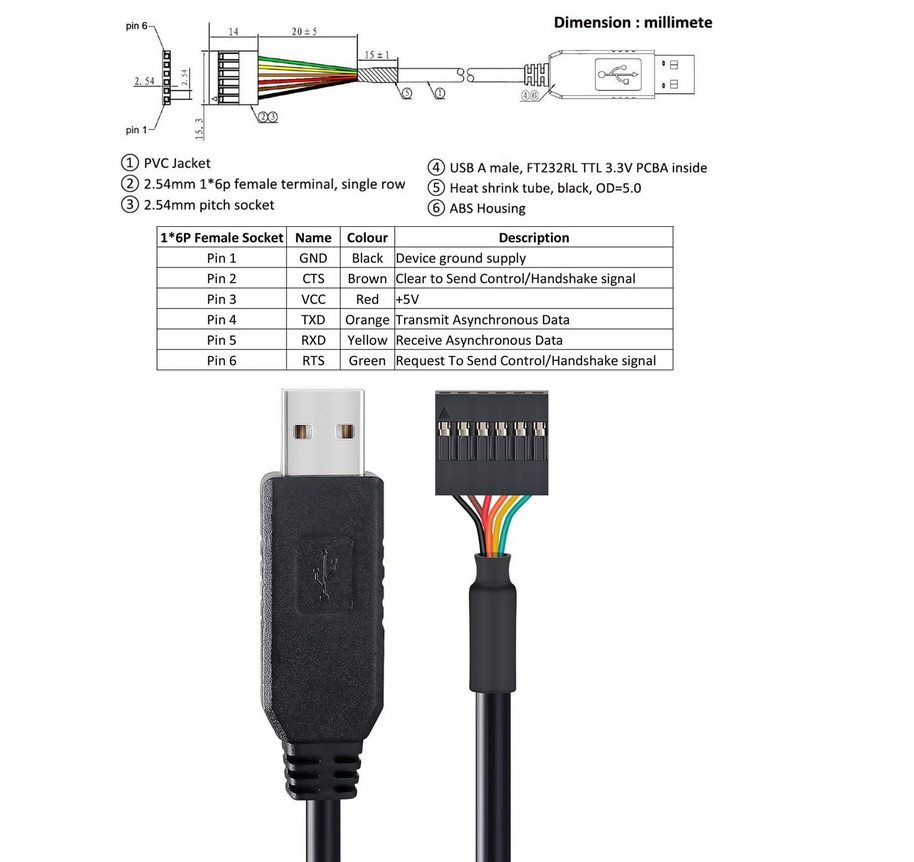

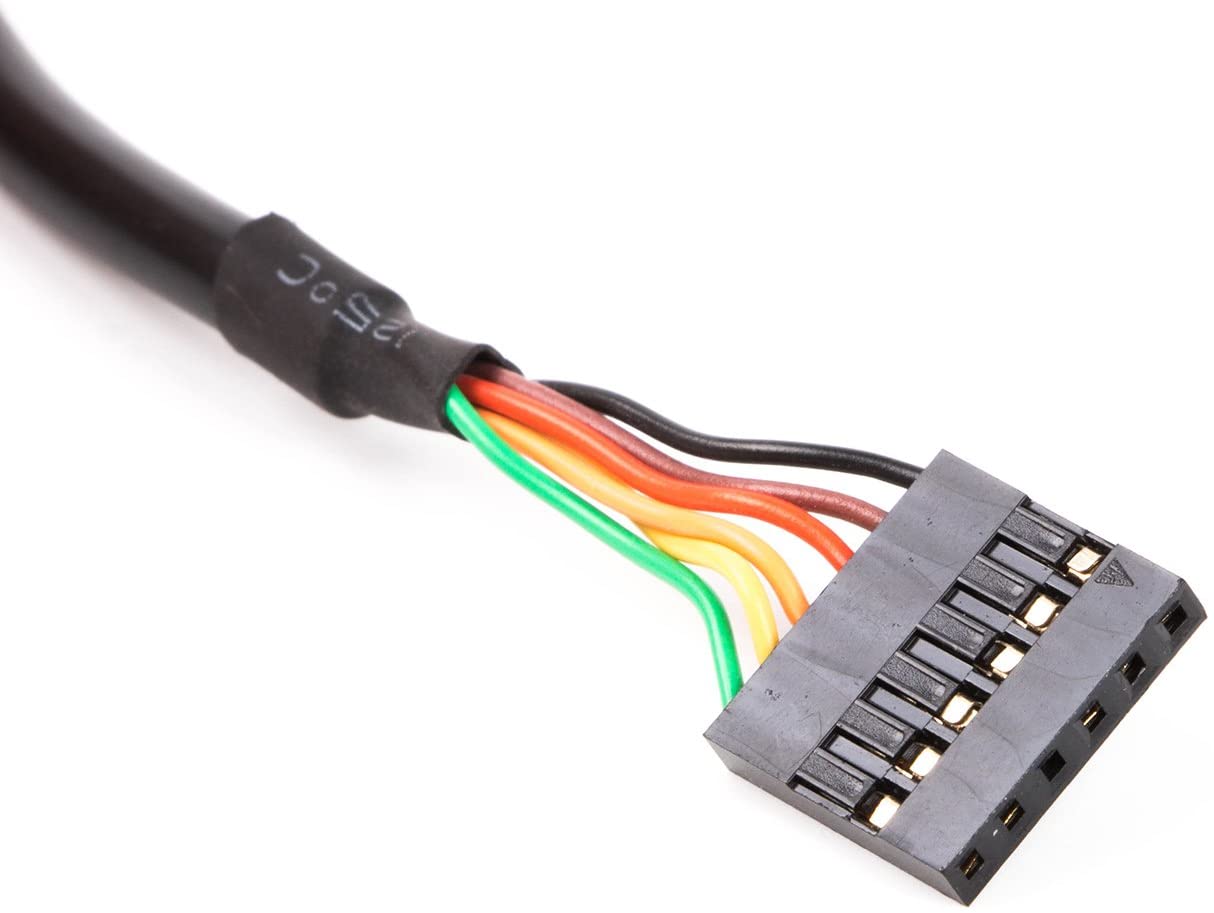

The TTL-232R uses a FT232RQ IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, CTS#, Vcc (5V), and GND.

The TTL-232R-5V is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is FCC and CE approved.
