TTL-232R-3V3
USB to UART cable Supports +3.3V UART signals
Data Rates:3MBaud USB
Speed:Full Speed (12Mbps)
USB Connector:Type A
End Connector:6 pin SIL, 0.1 pitch
Cable Length:1.8m Cable Details: 6 core, 5mm UL2464 24 AWG
Max Power Output:+5V / 75mA FTDI Internal IC:FT232R
Operating Temperature:-40°C to +85°C
The TTL-232R-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version
SKU:BEUT02
USB to UART cable Supports +3.3V UART signals
Data Rates:3MBaud USB
Speed:Full Speed(12Mbps)
USB Connector:Type A
End Connector:6 pin SIL, 0.1 pitch
Cable Length:1.8m Cable Details:6 core, 5mm UL2464 24 AWG
Max Power Output:+5V/75mA FTDI Internal IC:FT232R
Operating Temperature:-40°C to +85°C

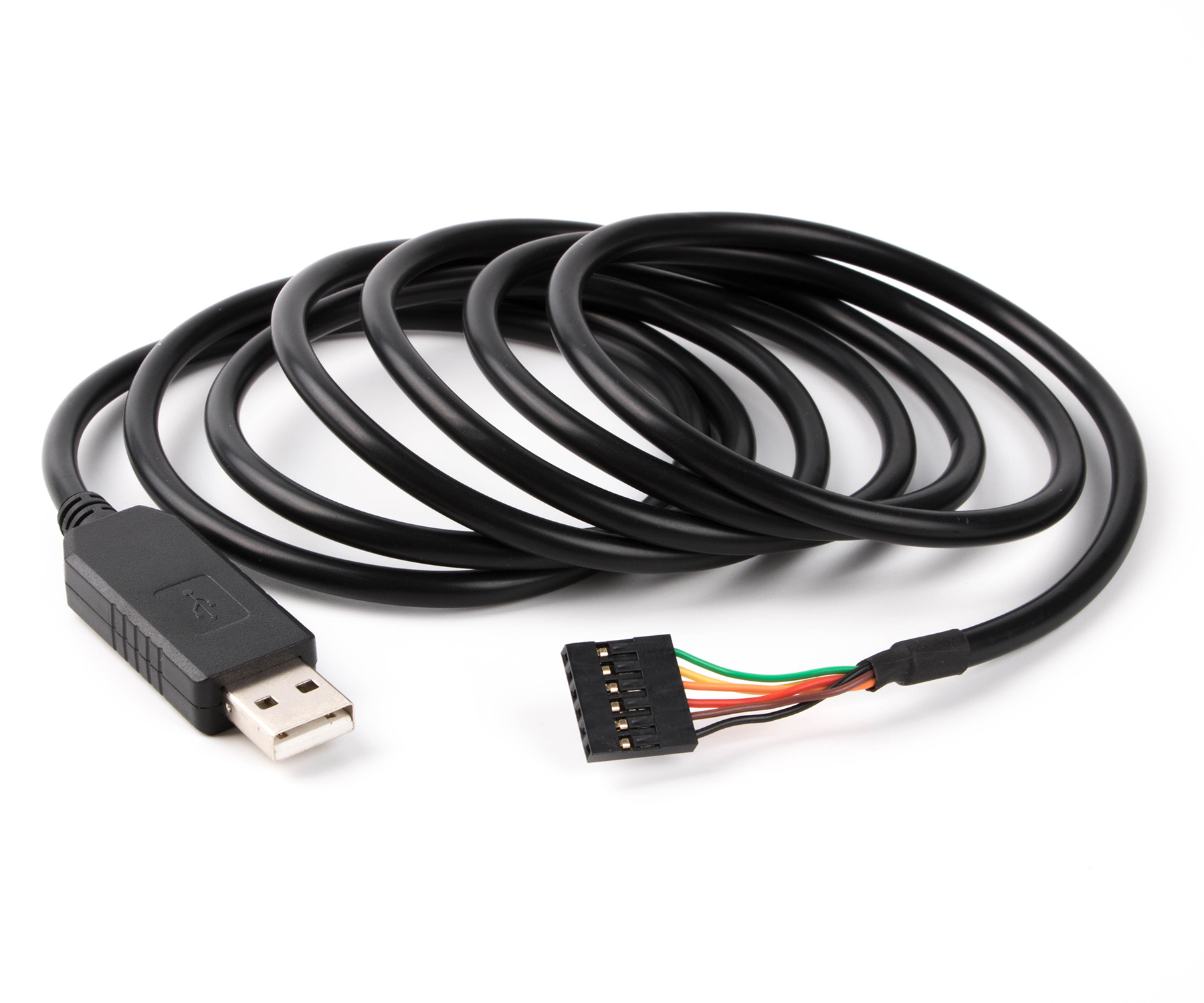

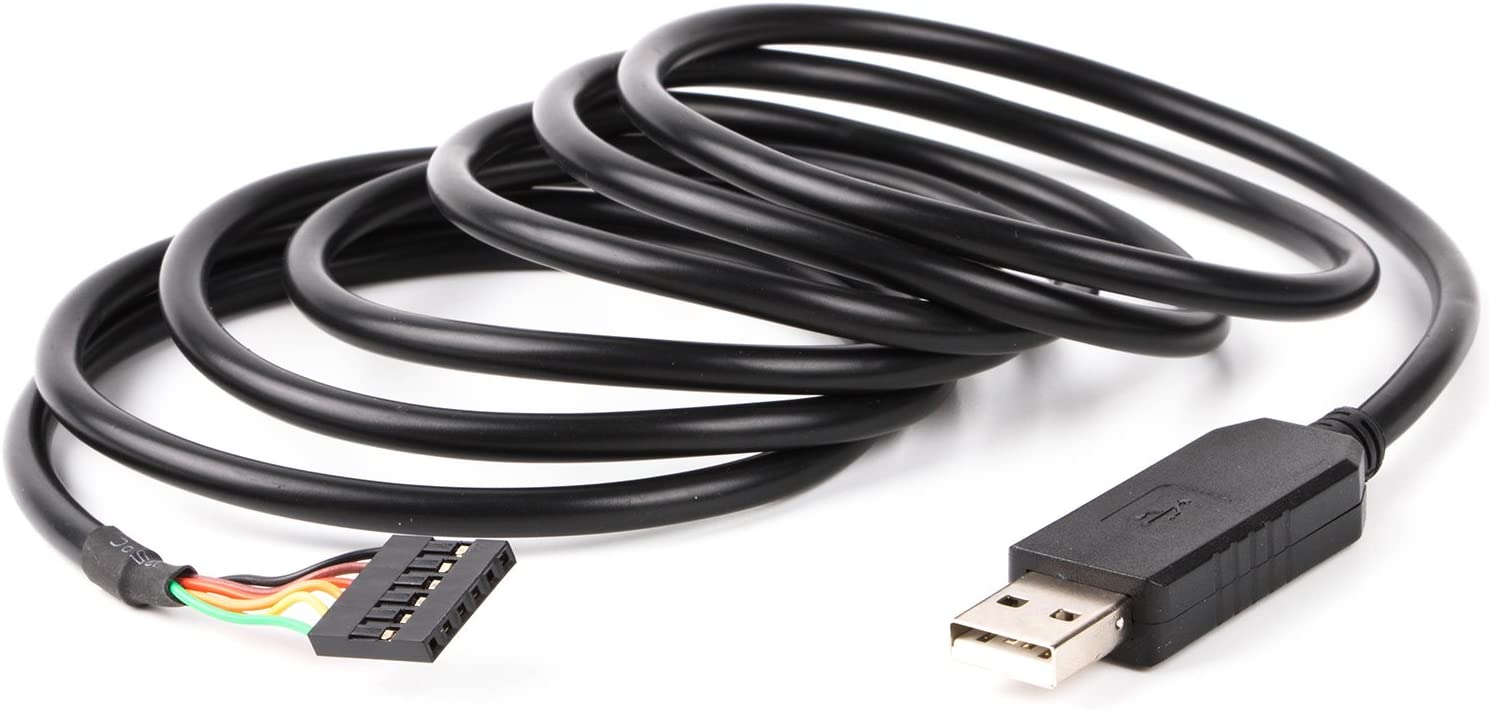

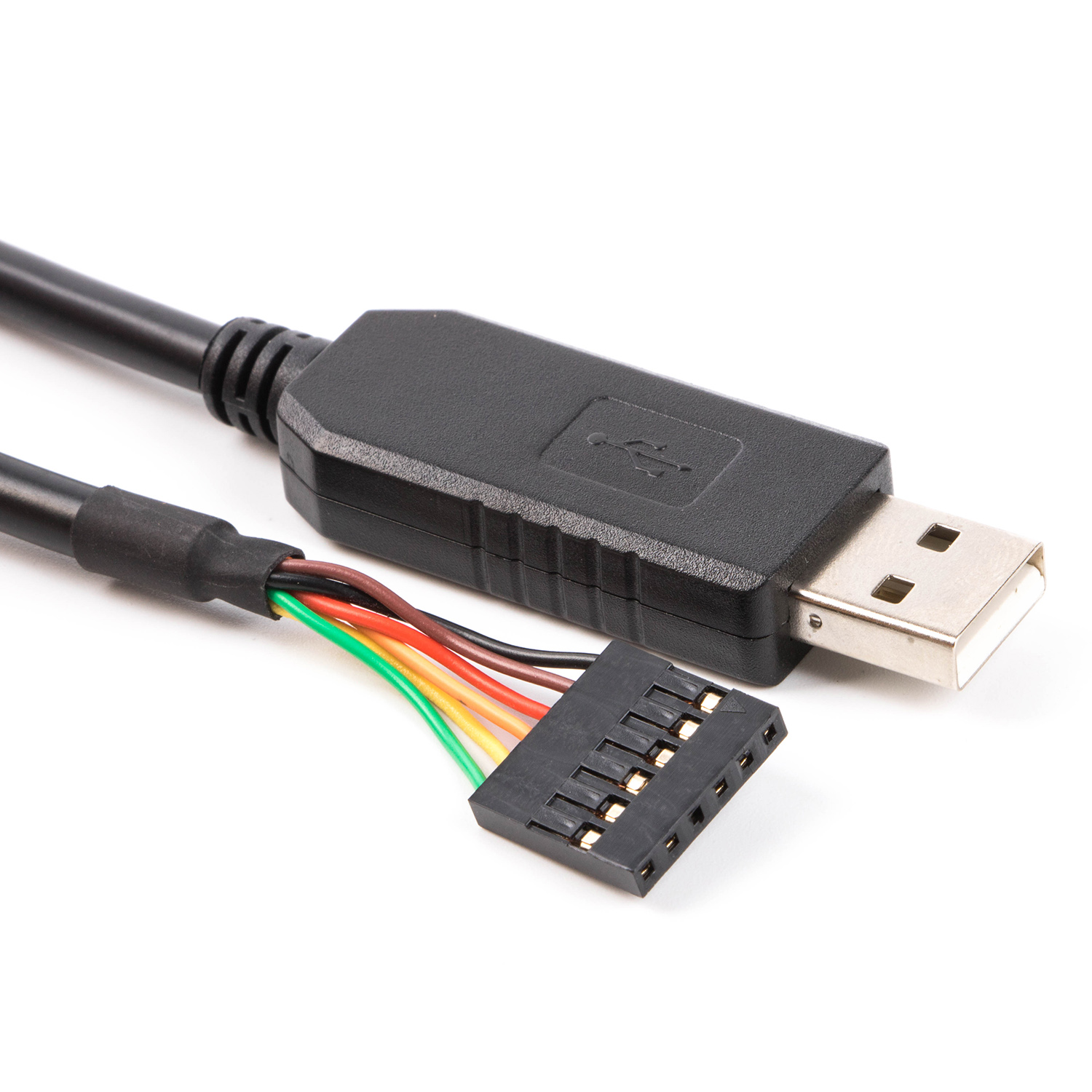

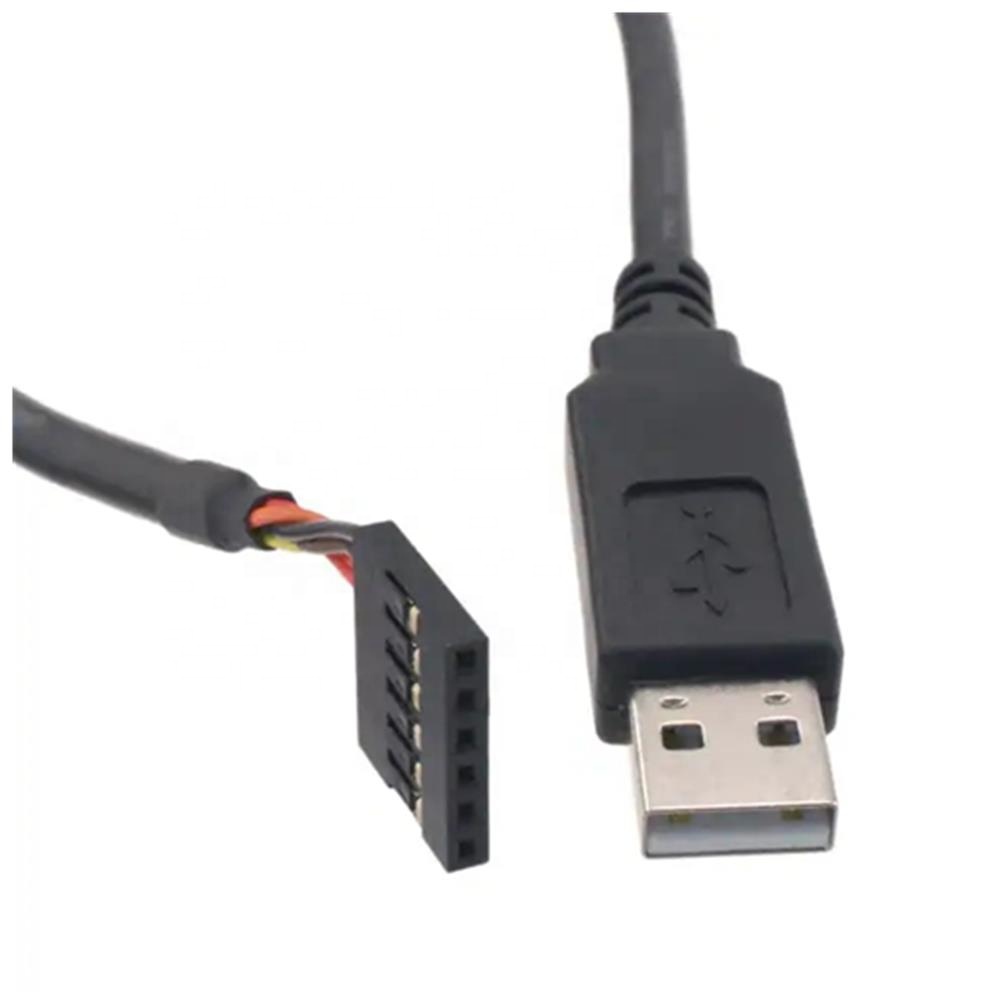

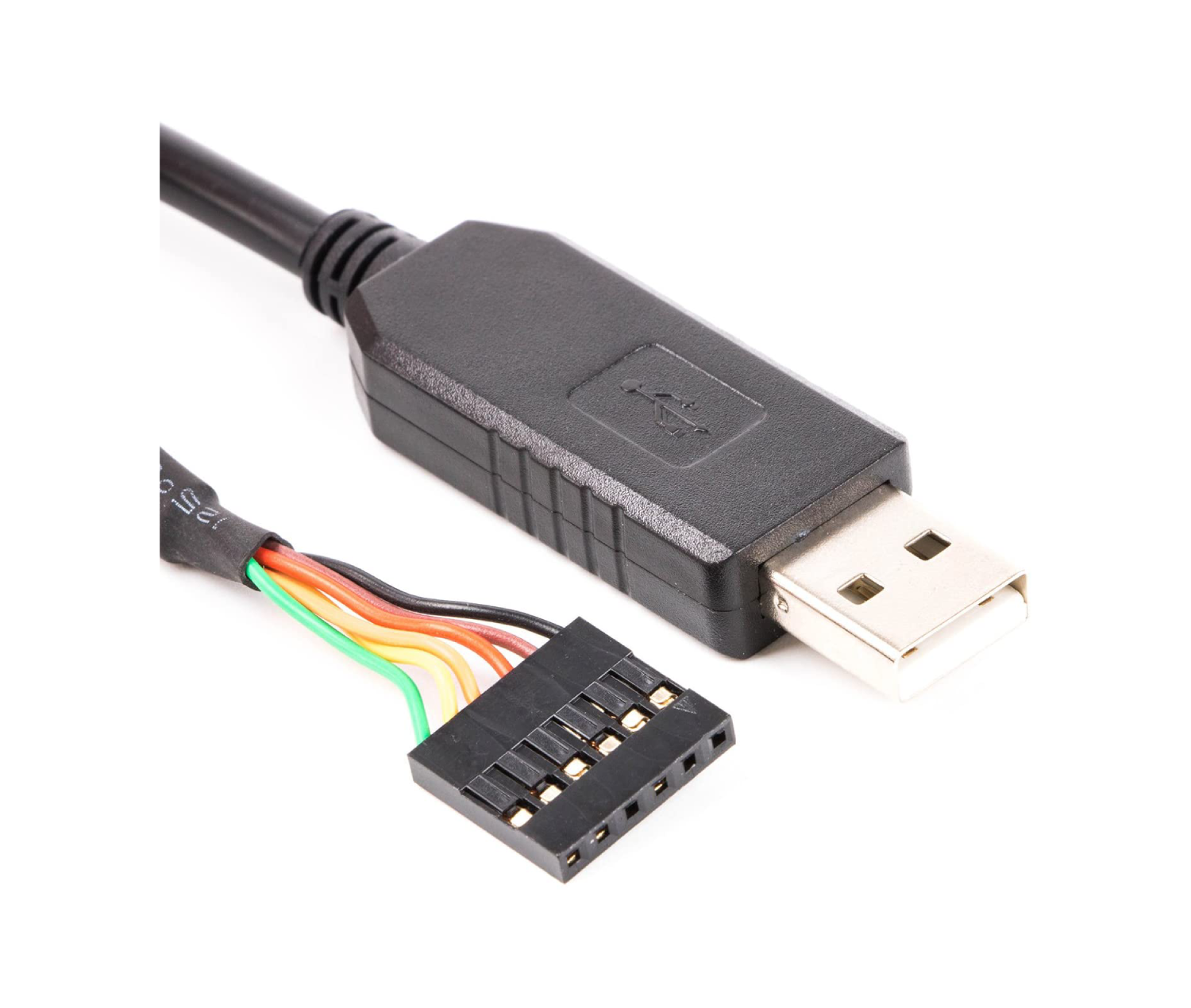

The TTL-232R-3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of FTDI’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 3.3V levels.

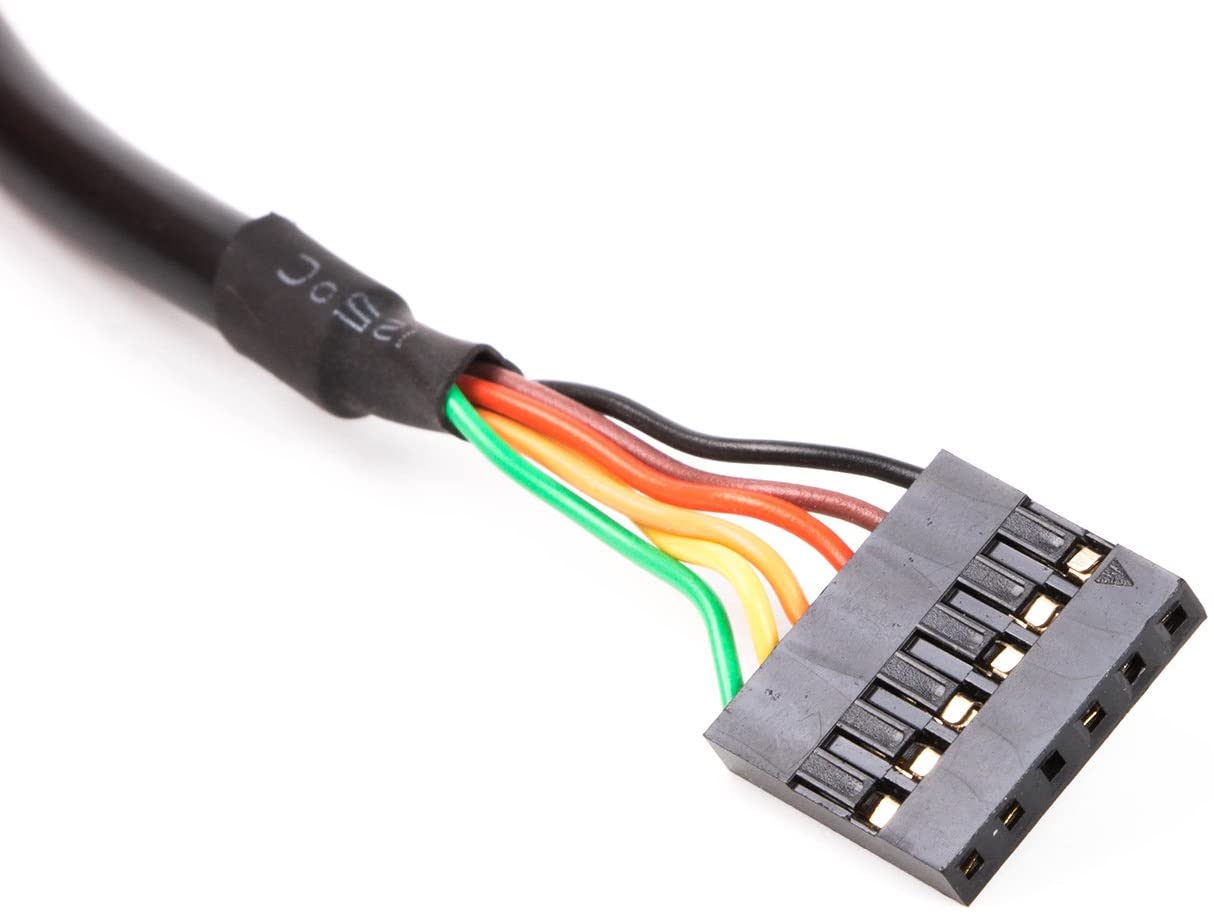

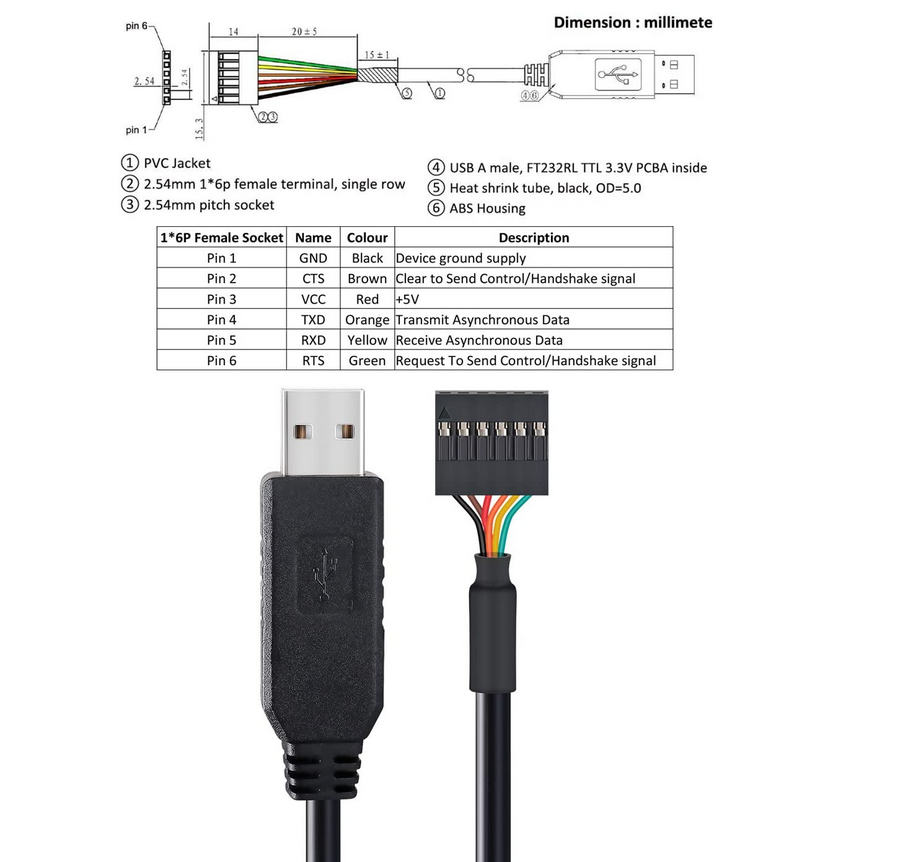

The TTL-232R-3V3 uses a FT232RQ IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), RTS#, and CTS#. These lines all operate at 3.3V levels. Also brought out on the header are Vcc (5V), and GND.
The TTL-232R-3V3 is fully RoHS compliant and is supplied loose – packed in an anti-static bag. It is FCC and CE approved.
