TTL-232R-3V3-AJ

SKU:BEUT04
USB to UART cable Supports +3.3V UART signals
Data Rates: 3MBaud
USB Speed: Full Speed (12Mbps)
USB Connector: Type A  End Connector: 3.5mm Audio Jack

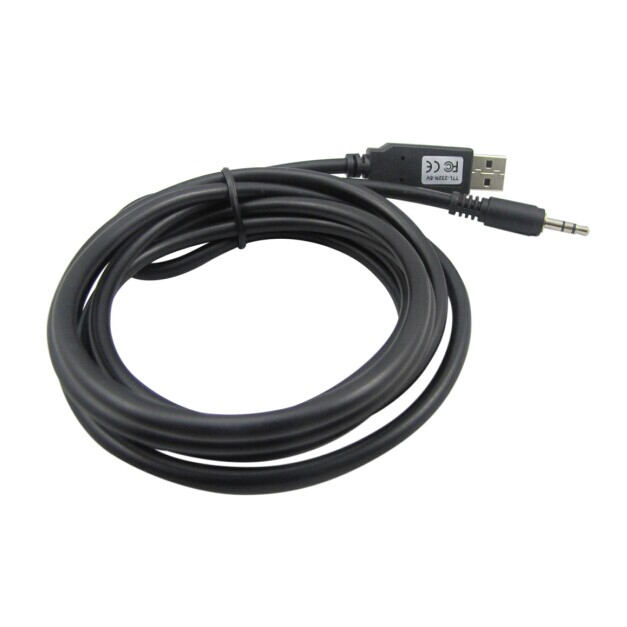

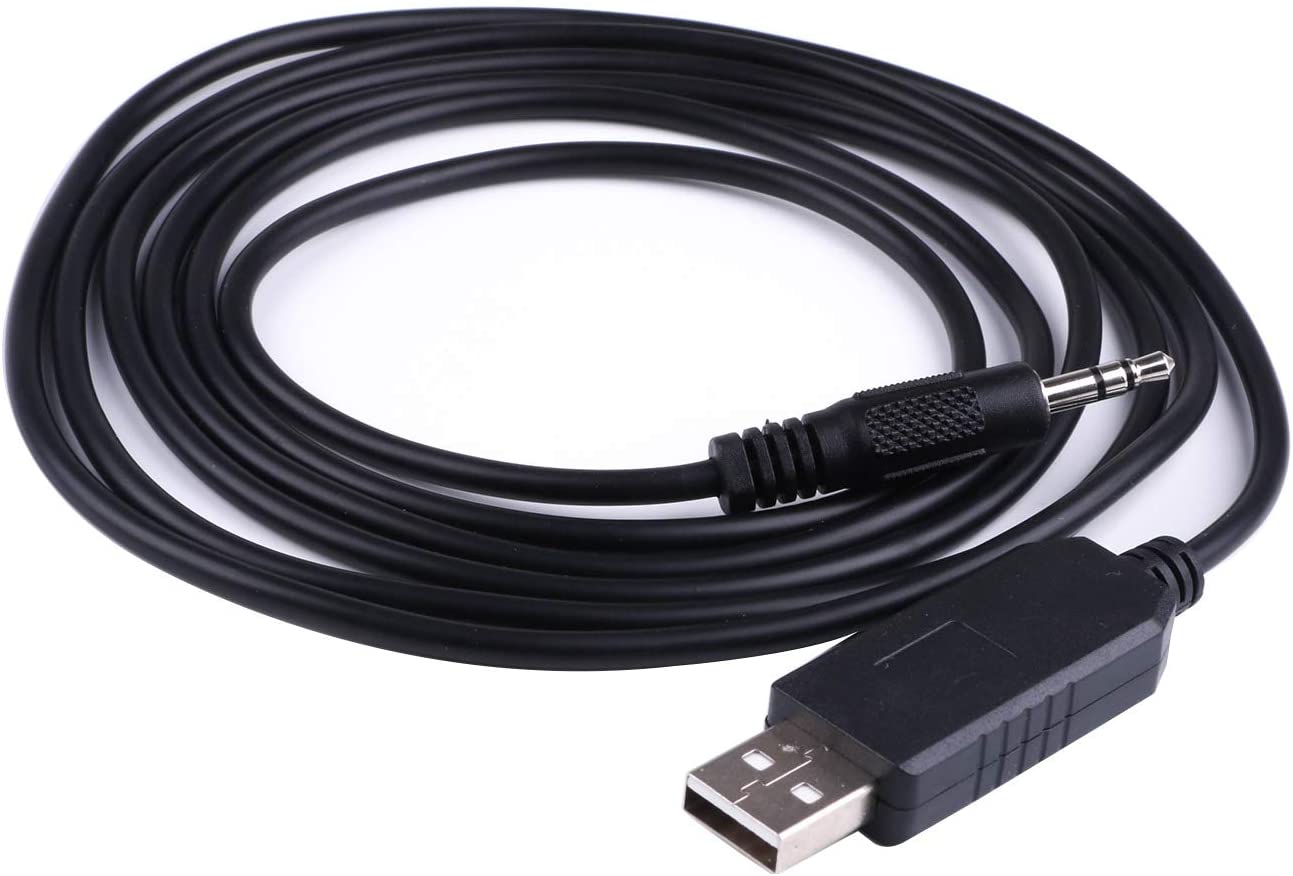

Cable Length: 1.8m
 Cable Details: 2 core and spiral, 24 AWG diam=5mm
Max Power Output: +5V / 75mA  FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C

The TTL-232R-3V3-AJ (“”audio jack””) is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL serial int

SKU:BEUT04
USB to UART cable Supports +3.3V UART signals
Data Rates:3MBaud
USB Speed:Full Speed(12Mbps)
USB Connector:Type A  End Connector:3.5mm Audio Jack
Cable Length:1.8m
 Cable Details:2 core and spiral, 24 AWG diam=5mm
Max Power Output:+5V / 75mA  FTDI Internal IC:FT232R
Operating Temperature:-40°C to +85°C

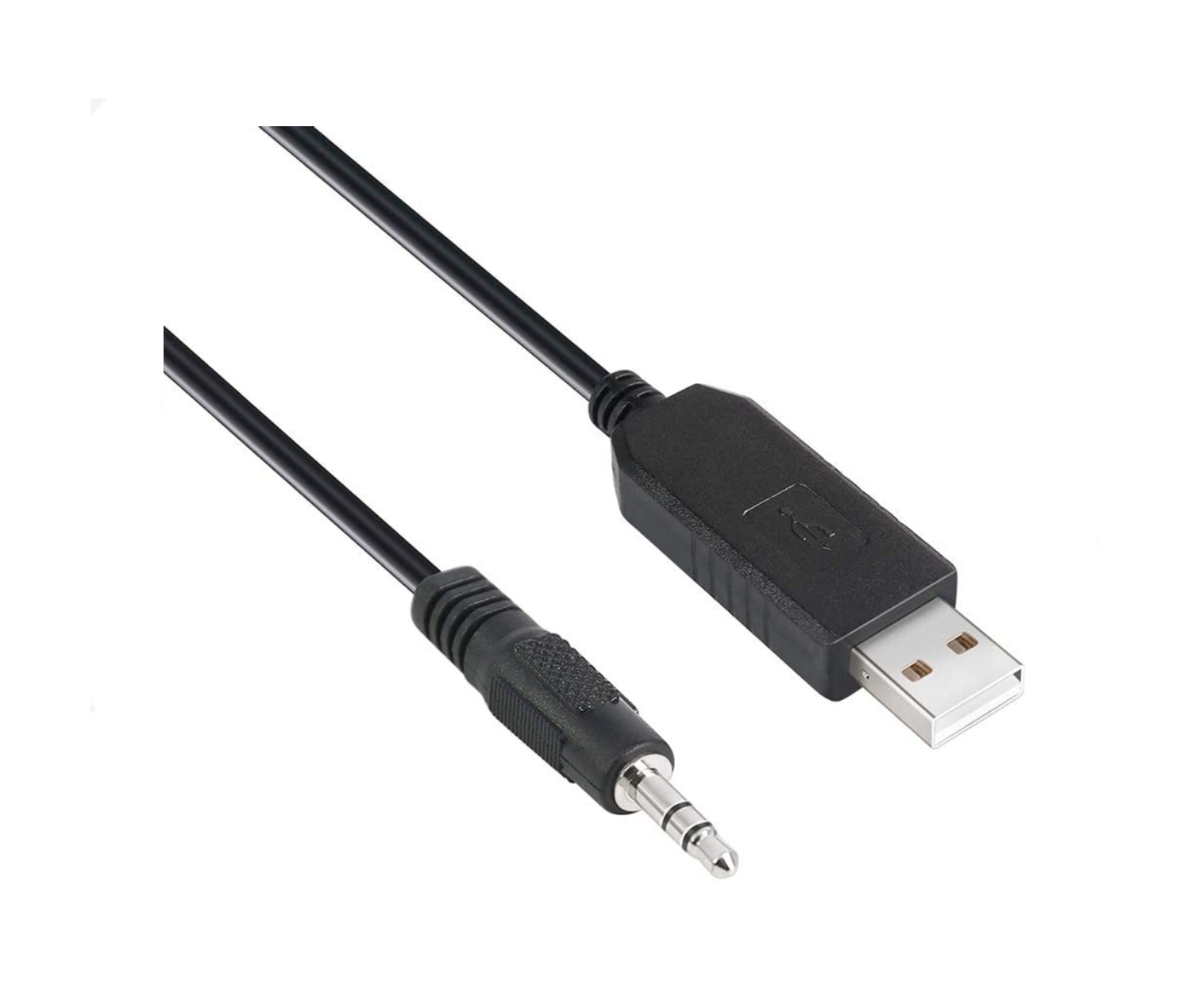

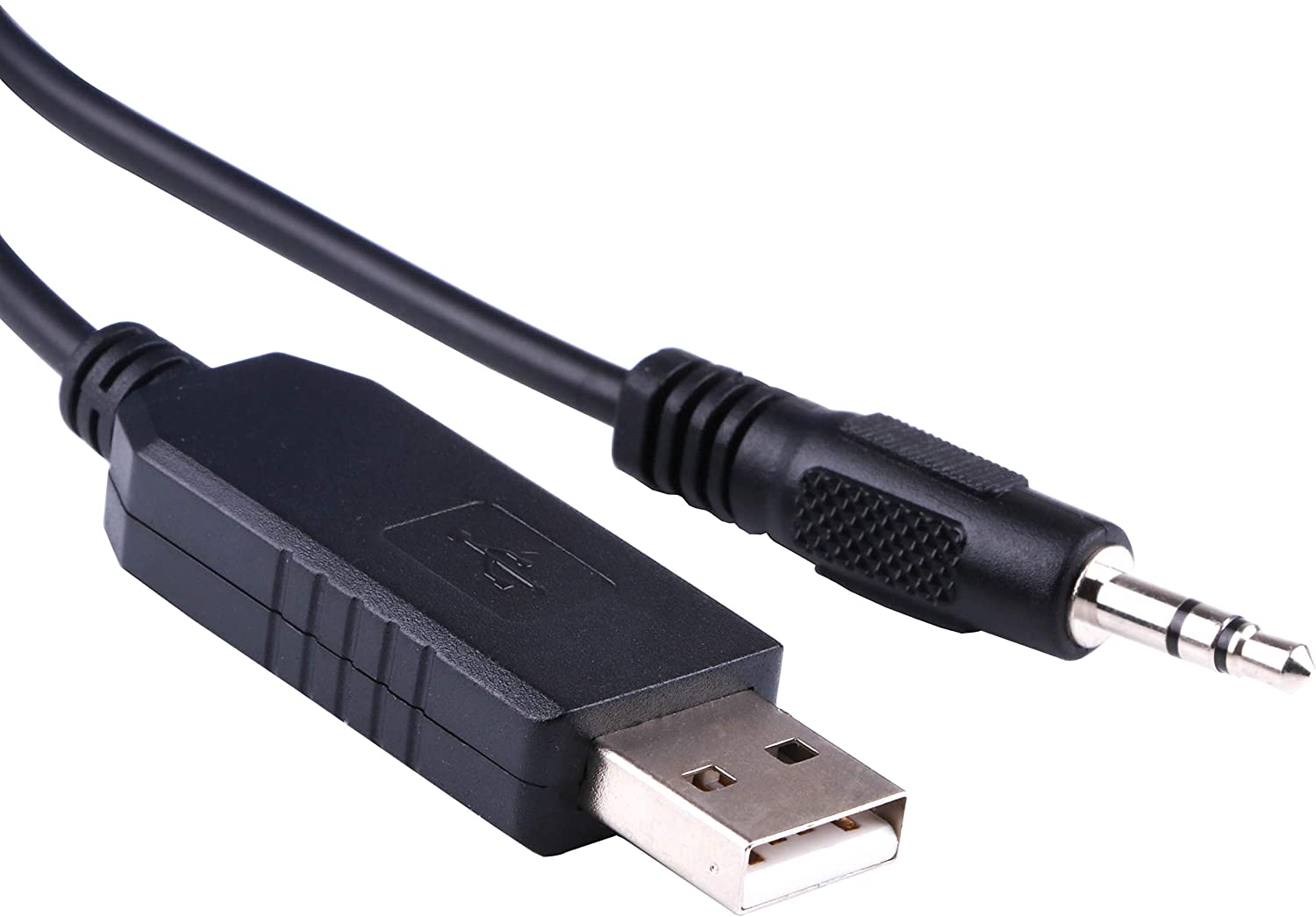

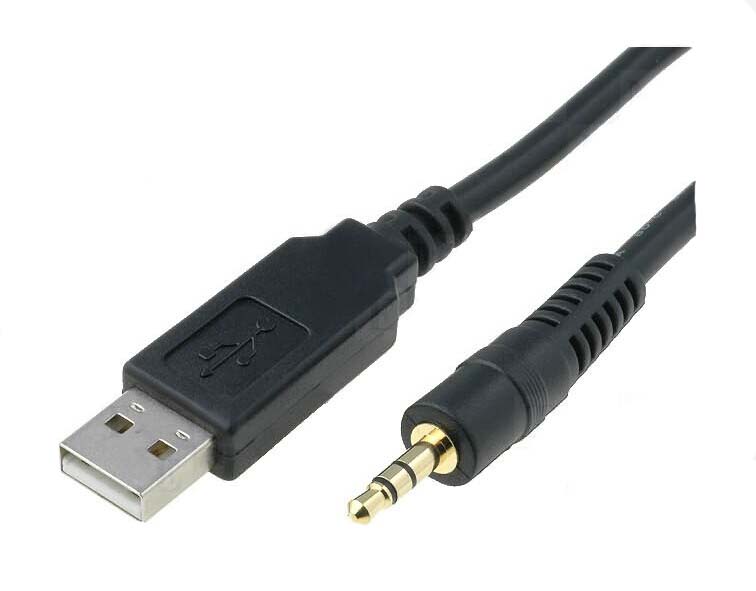

The TTL-232R-3V3-AJ (“audio jack”) is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL serial interface units to USB.



This version of FTDI’s USB to TTL serial adapter cable uses a 3.5mm audio jack on the serial interface and has it’s I/O pins configured to operate at 3.3V levels.

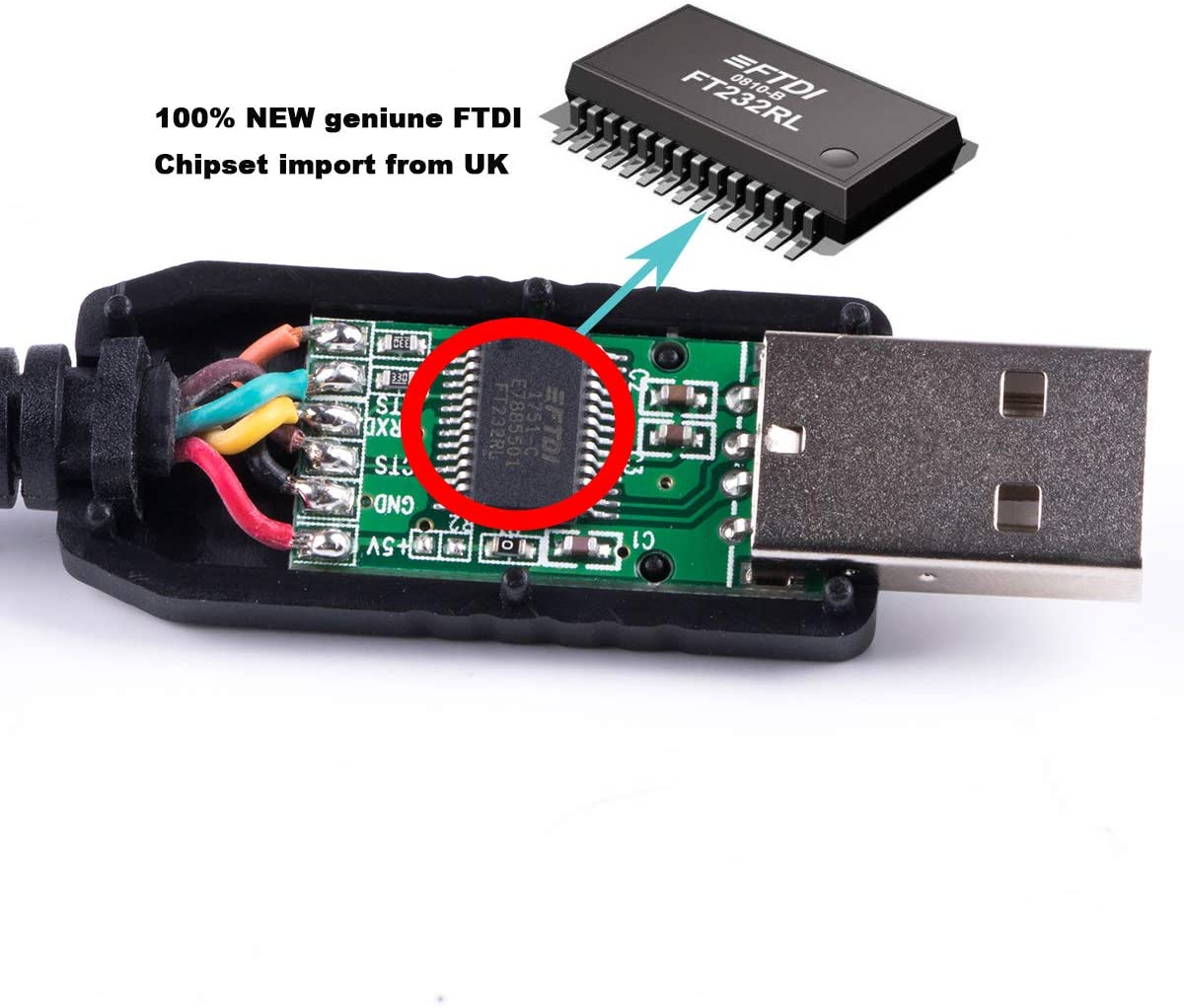

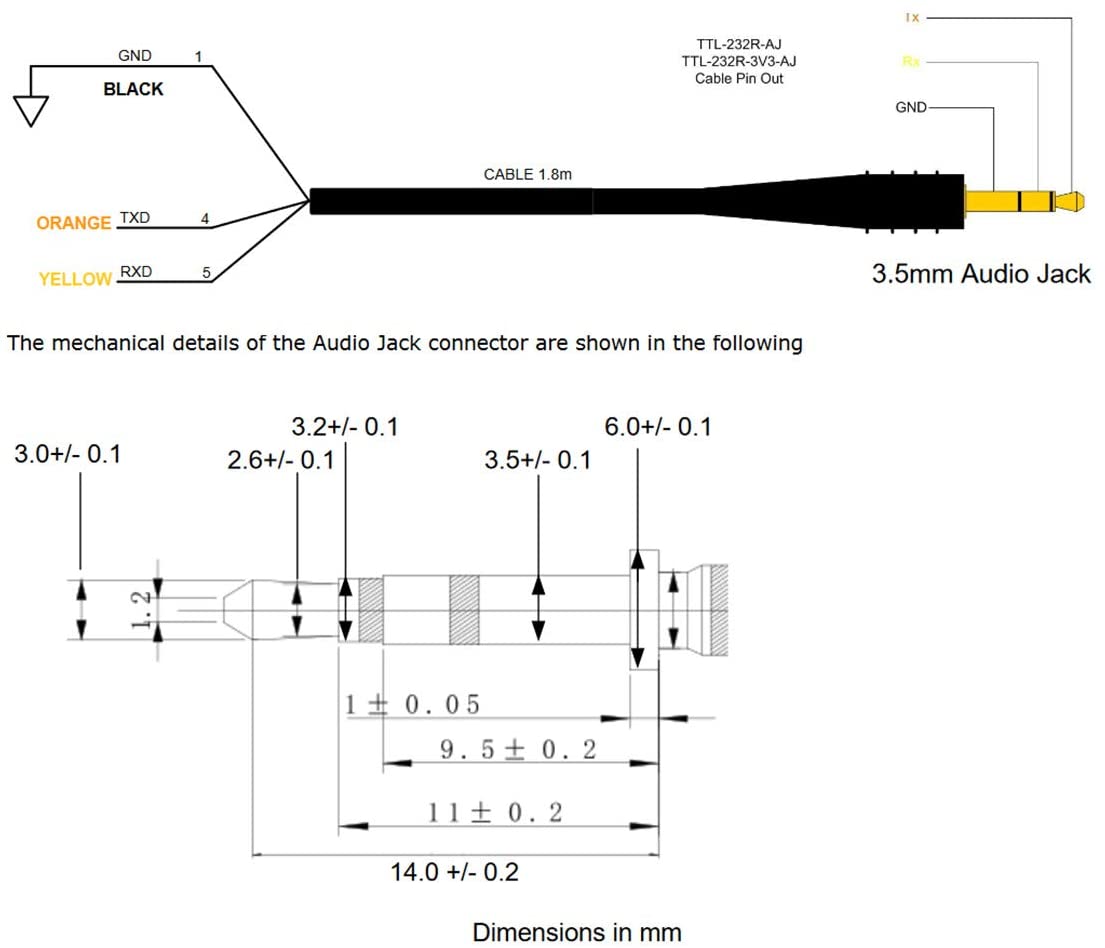

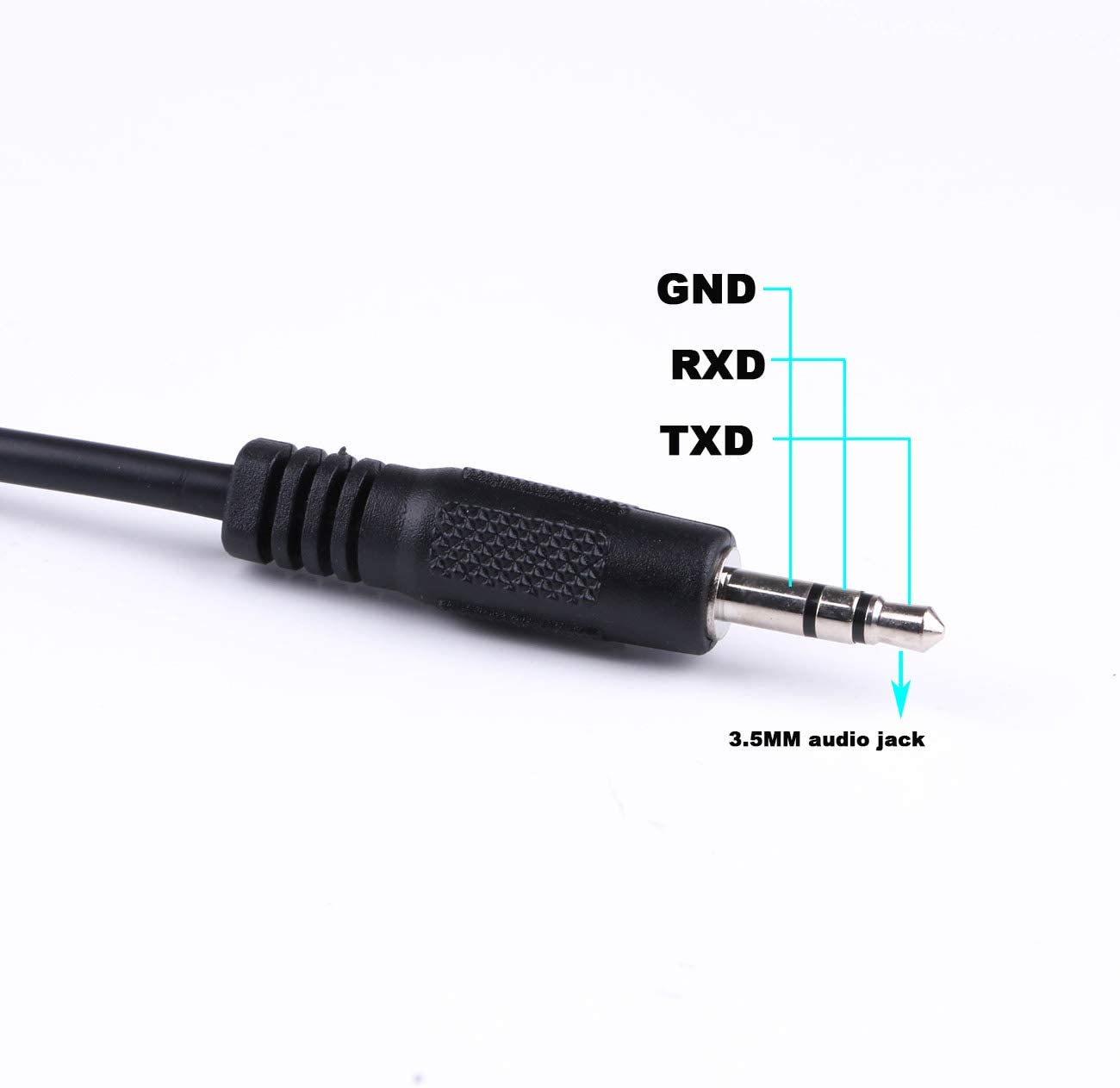

The TTL-232R-3V3-AJ uses a FT232RQ unit which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 m (70″”) cable with a 3.5 mm audio jack which provides access to transmit (Tx), receive (Rx), and GND signals.



The TTL-232R-3V3-AJ is fully RoHS compliant and is FCC and CE approved.
