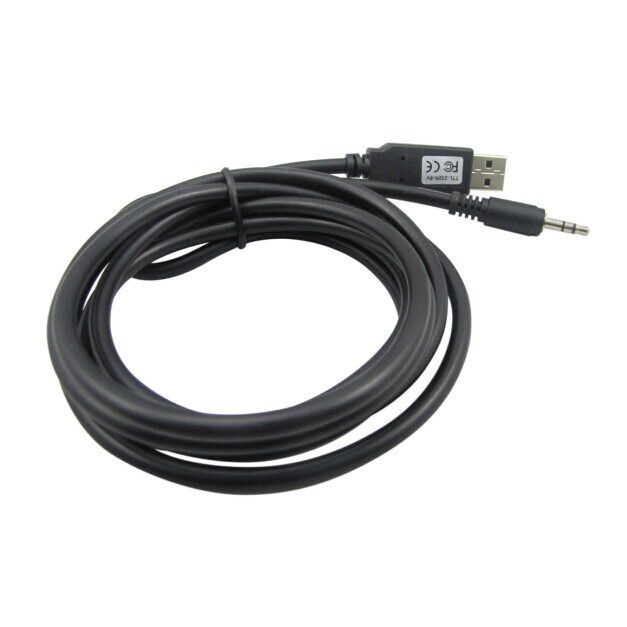

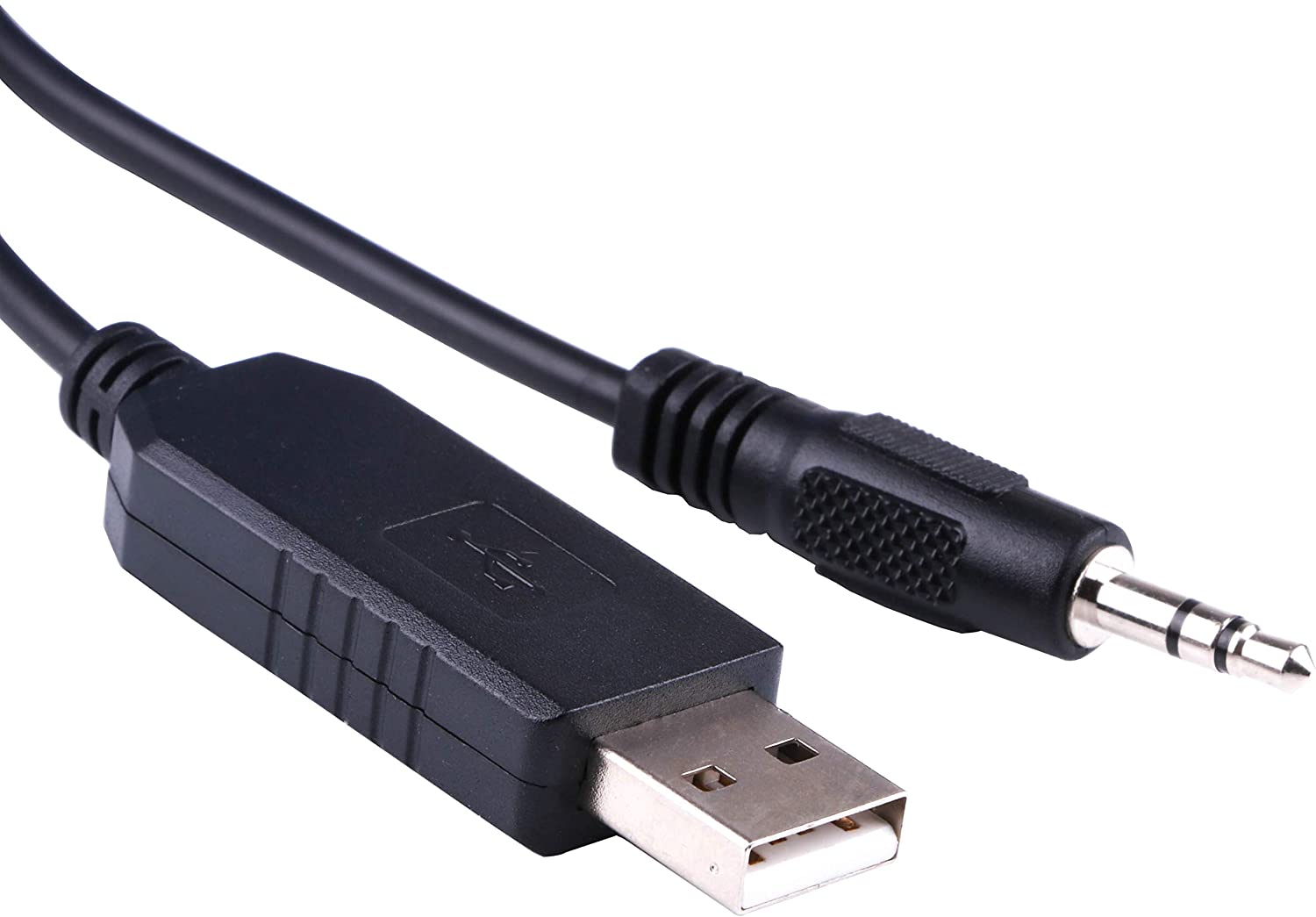

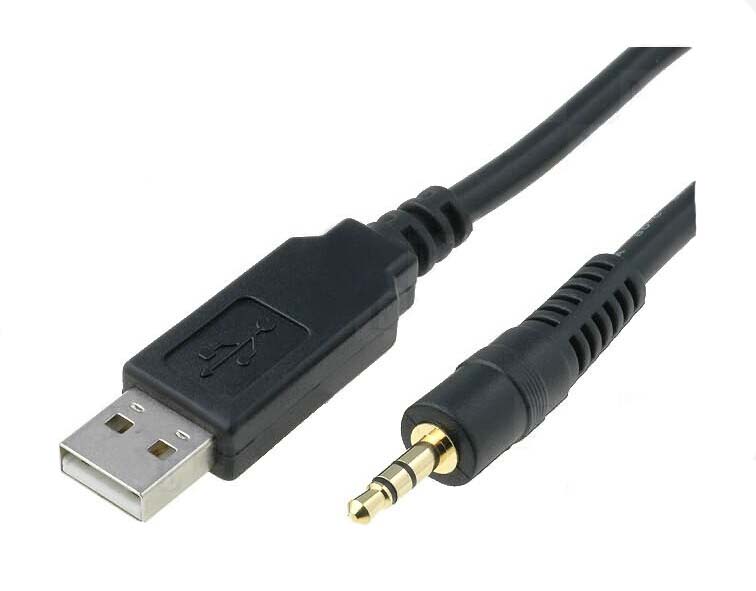

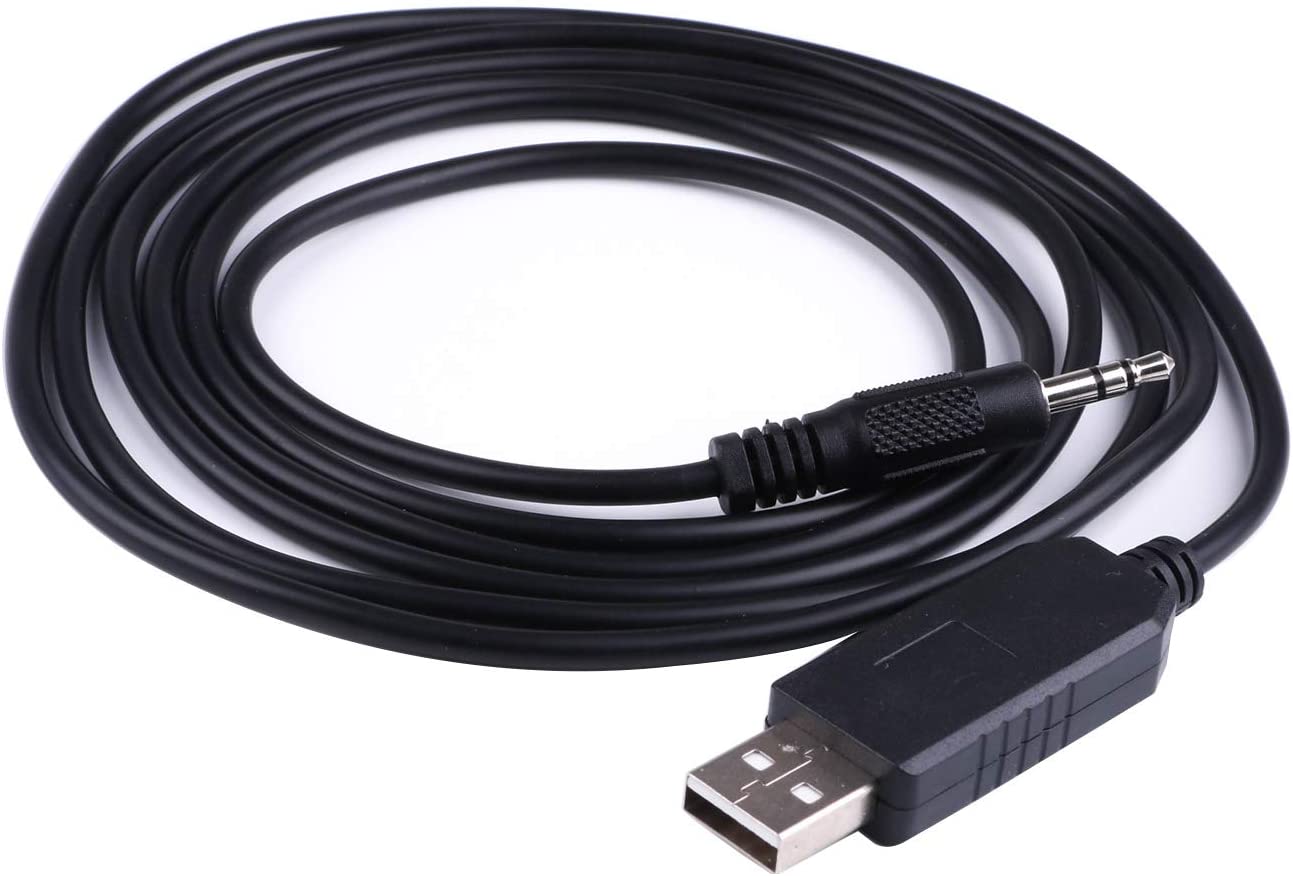

TTL-232R-5V-AJ
USB to UART cable Supports +5V UART signals
Data Rates: 3MBaud USB
Speed: Full Speed (12Mbps)
USB Connector: Type A
End Connector: 3.5mm Audio Jack
Cable Length: 1.8m Cable Details: 2 core and spiral, 24 AWG diam=5mm
Max Power Output: +5V / 75mA FTDI Internal IC: FT232R
Operating Temperature: -40°C to +85°C
The TTL-232R-5V-AJ (“”audio jack””) is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL serial inter
SKU:BEUT03
USB to UART cable Supports +5V UART signals
Data Rates:3MBaud USB
Speed:Full Speed(12Mbps)
USB Connector:Type A
End Connector:3.5mm Audio Jack
Cable Length:1.8m Cable Details:2 core and spiral, 24 AWG diam=5mm
Max Power Output:+5V / 75mA FTDI Internal IC:FT232R
Operating Temperature:-40°C to +85°C
The TTL-232R-5V-AJ (“audio jack”) is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL serial interface units to USB.
This version of FTDI’s USB to TTL serial adapter cable uses a 3.5mm audio jack on the serial interface and has it’s I/O pins configured to operate at 5V levels.

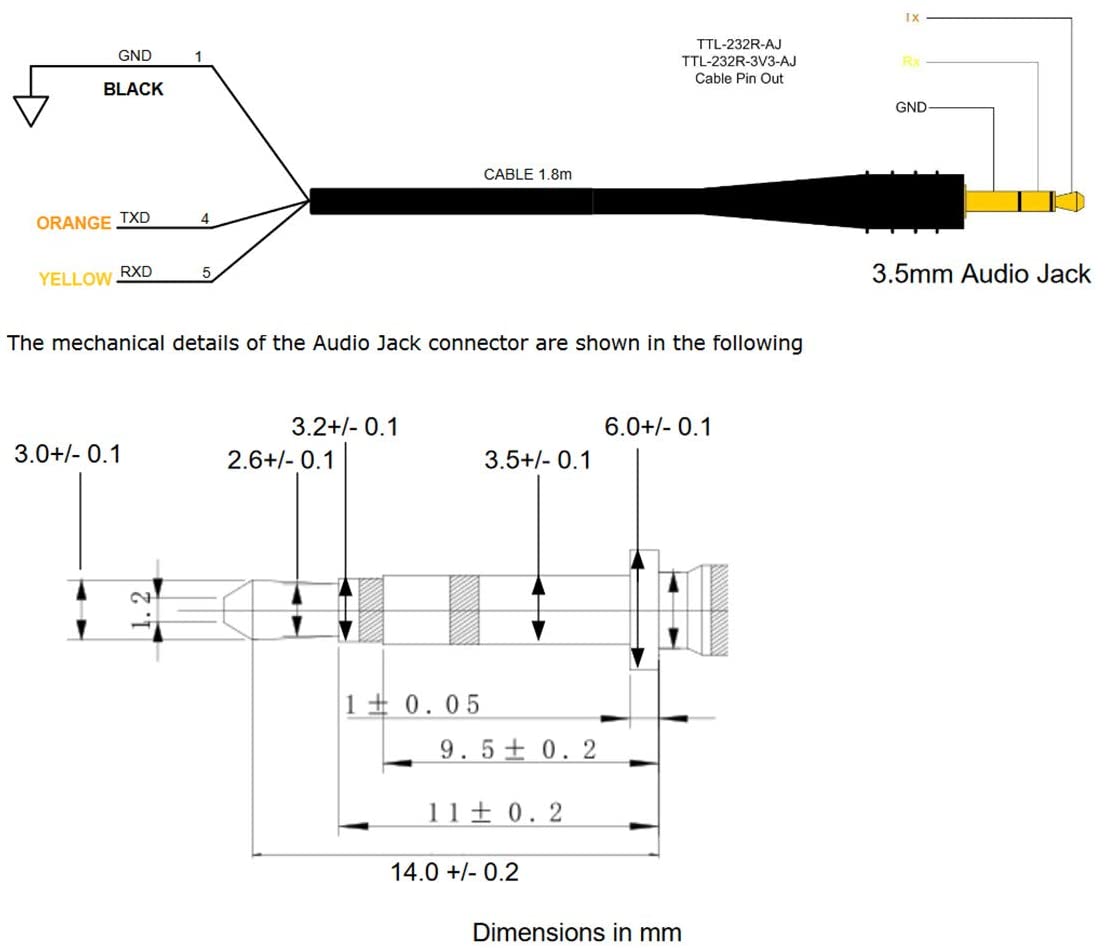

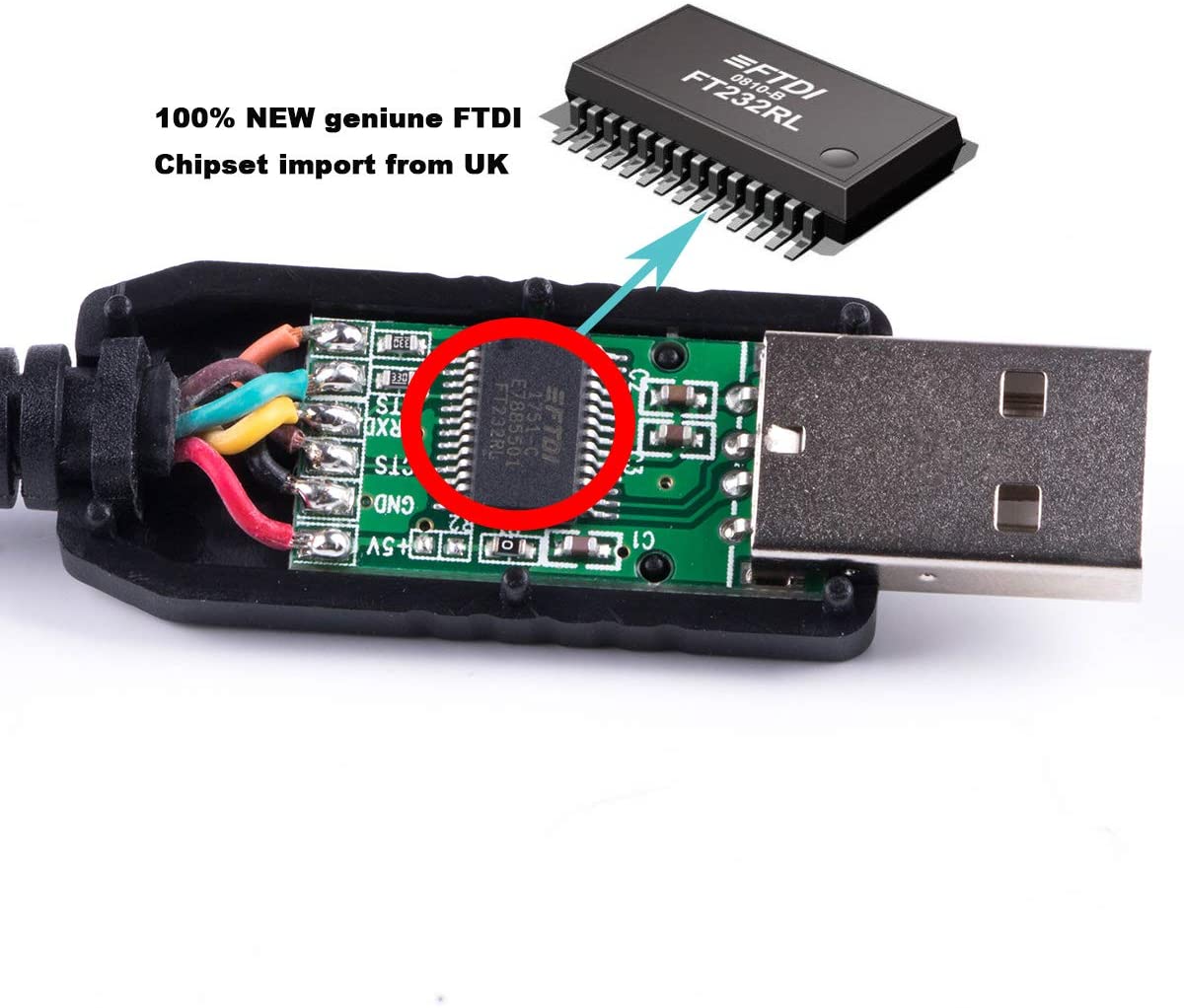

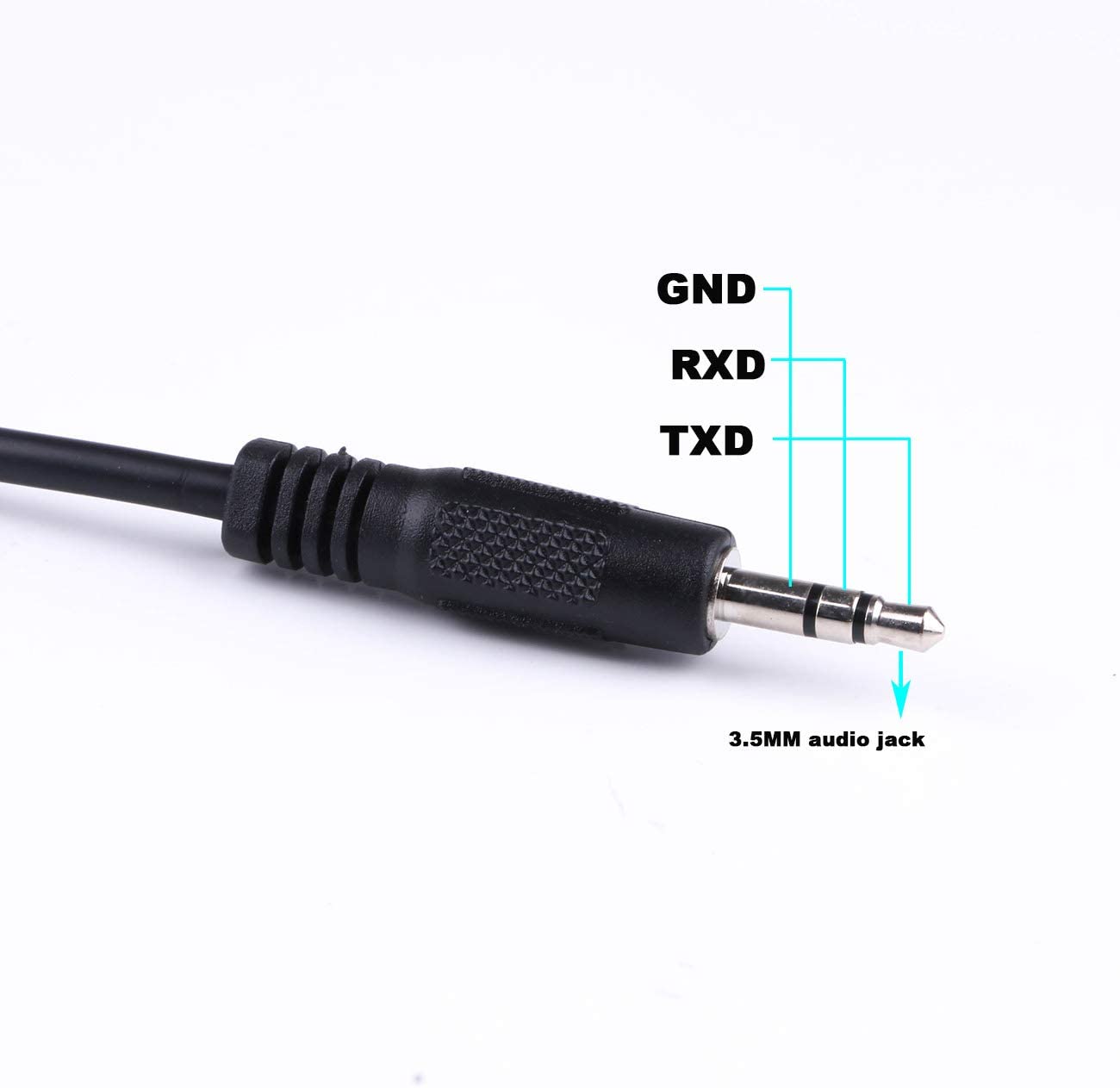

The TTL-232R-5V-AJ uses a FT232RQ unit which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1.8 m (70″”) cable with a 3.5 mm audio jack which provides access to transmit (Tx), receive (Rx), and GND signals.
The TTL-232R-5V-AJ is fully RoHS compliant and is FCC and CE approved.
